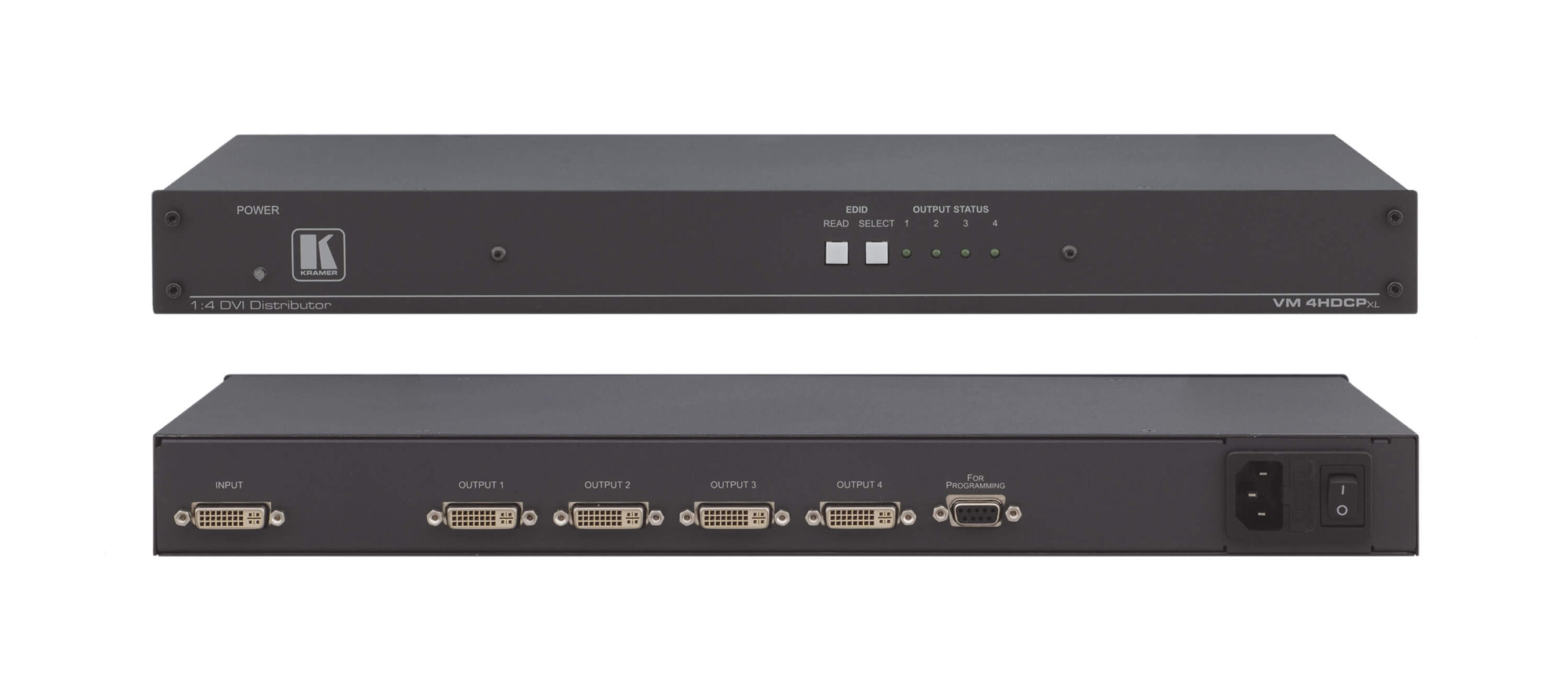

Kramer 1:4 DVI Distributor

VM-4HDCPxl
1:4 DVI (HDCP) Distribution Amplifier

Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
HDCP–Compliant
Reclocking & Equalization
Size — Standard 19″ (1U). Rack “ears” included.
Audio — E

INPUT

1 DVI, 1.2Vpp on a DVI Molex 24–pin (F) connector
DDC signal 5Vpp (TTL)
OUTPUTS

4 DVI, 1.2Vpp on DVI Molex 24–pin (F) connectors
DDC signal 5Vpp (TTL)
MAX. DATA RATE

6.75Gbps (2.25Gbps per graphic channel)
CONTROLS

EDID SELECT, EDID READ
INDICATOR LEDS

OUTPUT STATUS LEDs
POWER CONSUMPTION

100–240V AC, 50/60Hz 17VA
INCLUDED ACCESSORIES

Power cord, rack “ears”
PRODUCT DIMENSION

19″ x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H
PRODUCT WEIGHT

1.5kg (3.2lbs) approx
SHIPPING DIMENSION

55.00cm x 27.60cm x 10.70cm (21.65″ x 10.87″ x 4.21″ ) W, D, H
SHIPPING WEIGHT

2.2kg (4.9lbs) approx
